Stained Glass Installation Options

Find out which stained glass installation option is right for you.

1

Single Pane

With or without hooks
  • Great for quick install
  • Great for decorations
Stained Glass Installation Options is easy as 1, 2, or 3
  • Hang or suspend within your window frame by hooks (hardware included)
  • Pressing against your existing glass and trim in with quarter round, moulding or mirror clips
  • Use as an interior room divider
  • Cabinets and furniture inserts
  • Interior transom windows

Product made by
SGAA Affiliate Member

Optional Triple pane IG thermal units

Learn More About Triple Pane IG Thermal Units Duraseal® warm-edge spacer

Highest quality Seal available on the market
Duraseal® warm-edge spacer

2

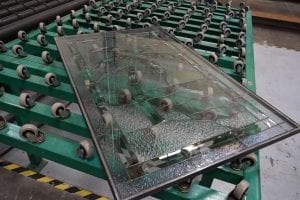

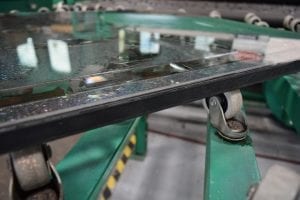

Triple Pane Unit

Insulated with tempered safety glass and a warm edge spacer
  • Great for home security
  • Great for winter insulation

Tempered safety glass is glass that has been specially heat-treated to make it significantly stronger than ordinary annealed glass and to make it break in a safer way.

During tempering, the glass is heated to roughly 1,100°F and then rapidly cooled. This creates compressive stresses on the surface that increase its strength.

The key safety feature is how it breaks: instead of breaking into large, sharp shards like ordinary glass, fully tempered glass breaks into many small, relatively blunt pieces, reducing the likelihood of serious cuts.

  • This unit will replace the glass in your existing frame (most all vinyl frames/doors and some wood/aluminum frames)
  • Door insert replacements
  • Great as an interior room divider
  • Helps with sound reduction
  • Easier cleaning and preserves stained glass lead lines
  • 3/4 thick

3

Vinyl or Wood Framing

Insulated and pre-installed in a frame
  • Great for new construction or window replacement
  • Great for home remodeling

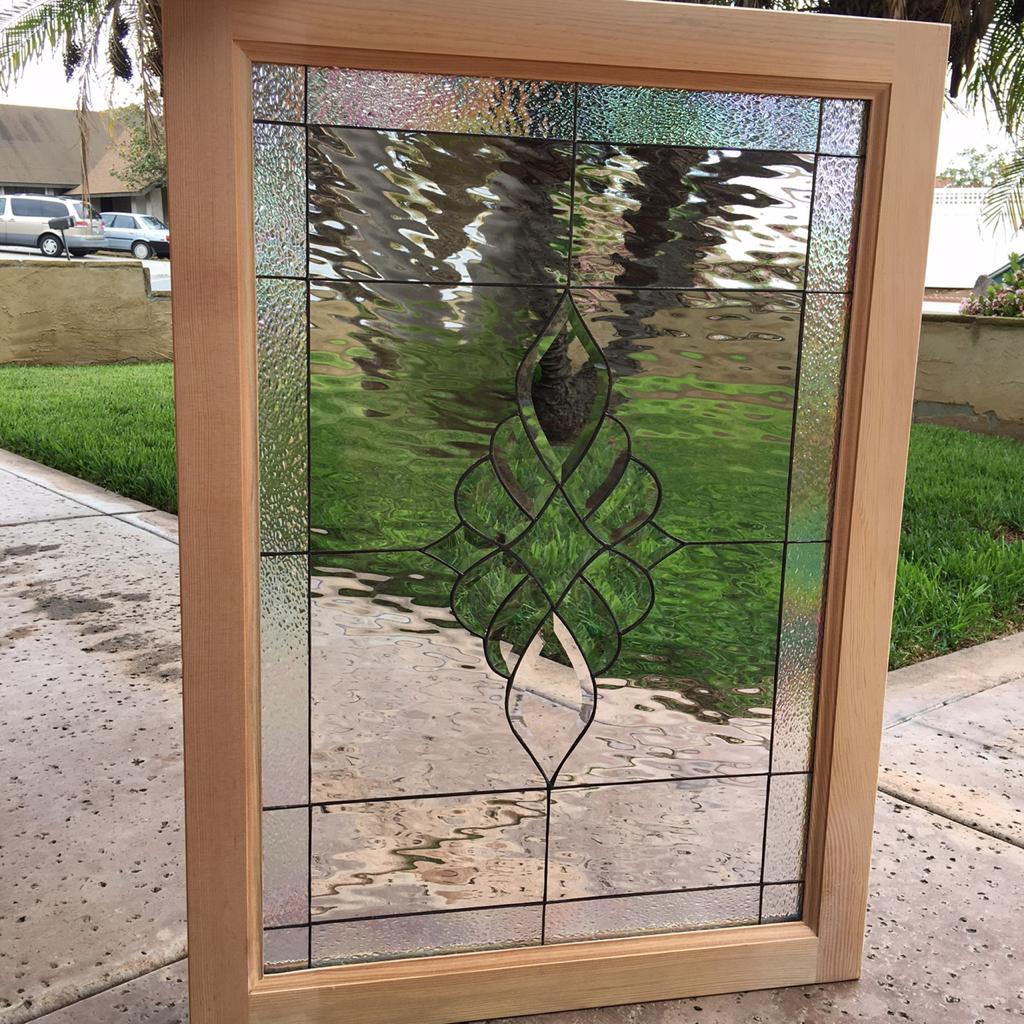

Vinyl Frame Whole Wood Frame

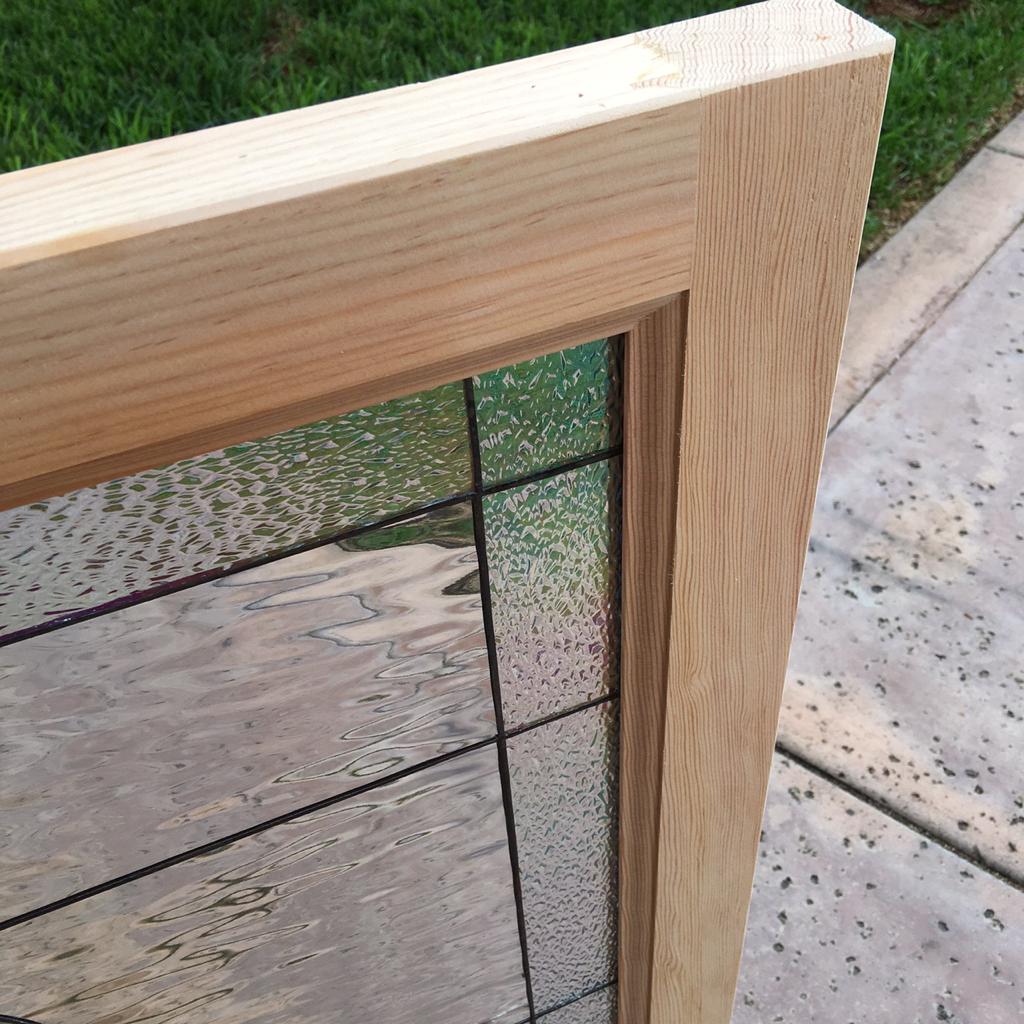

Vinyl Frame Closeup Wood Frame Side
  • Vinyl framing replaces your existing window frame
  • Always order your frame 1/2 inch smaller than your Rough Opening
  • Vinyl frames available with or without the nailing flange
  • Tempered Impact resistant glass
  • Vinyl framing comes in white or almond color
  • Wood sash framing available as well
